Schluter®-DILEX-HKS

Stainless steel cove-shaped profile for floor/wall transitions

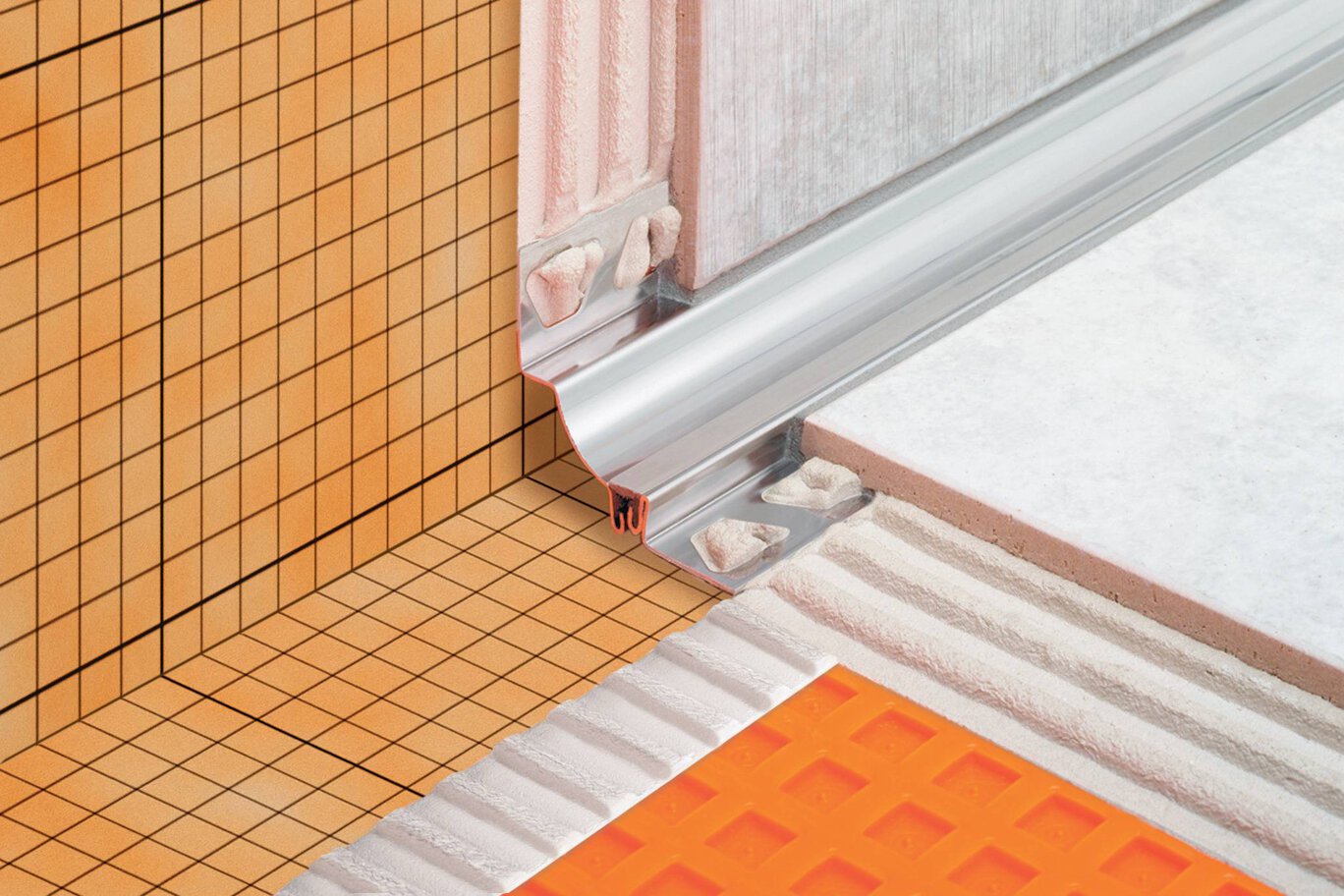

Schluter®-DILEX-HKS is a heavy-duty stainless steel, cove-shaped profile for floor/wall transitions with dissimilar sized tiles.
  • Designed to allow movement and reduce stress in large, tiled areas
  • Eliminates the need for caulking
  • Prevents cracking and delamination of tiles
  • Features a soft, thermoplastic rubber movement zone to absorb larger movements at floor/wall transitions and inside wall corners

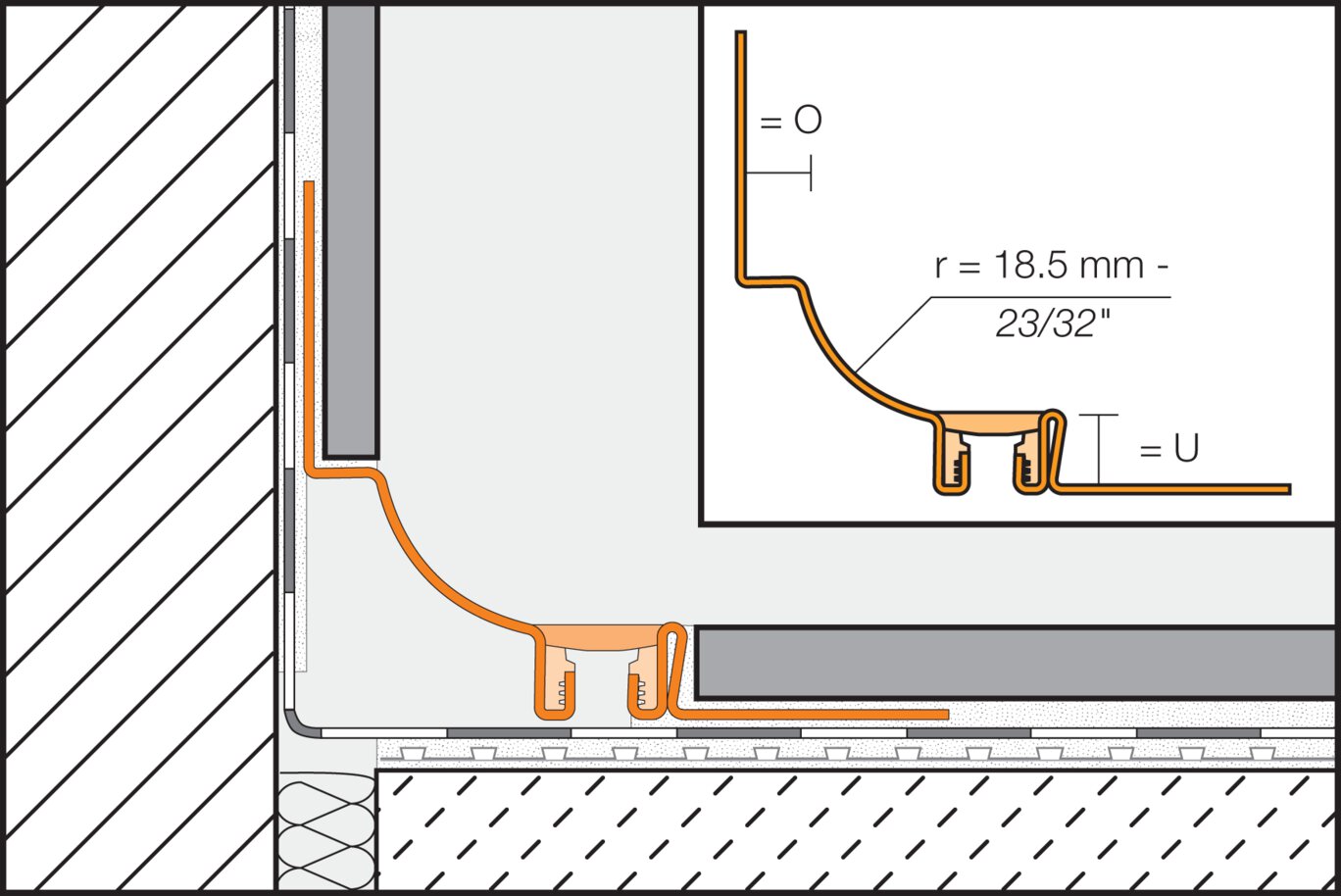

  • Features a 23/32"(18.5 mm)-wide radius to prevent accumulation of dirt and make cleaning simple
  • Outside corners, 2-way and 3-way inside corners, connectors, and end caps are available
  • Available in stainless steel 316L (1.4404 = V4A); contact Customer Service for pricing and availability
  • 90°outside corners with pre-cut profile sections are available by special order
 ...read more  ...show less

Product type

Select all options to find the
specific product you want to buy.

Find recommended accessories here

Schluter®-DILEX-HKS features a soft, thermoplastic rubber movement zone that is attached to the profile via rigid rubber grip bars to absorb larger movements at floor/wall transitions and at inside wall corners. DILEX-HKS prevent surface water penetration and meet the maintenance and hygienic requirements of commercial kitchens, bathrooms, food-processing plants, and hospitals, or any tiled environment where a sanitary cove base is desired. Accessories for both DILEX-HKS include: inside and outside corners, connectors, and end caps. Also available by special order are 90° outside corners with 6” (150 mm) pre-cut profile sections.

DILEX-HKS requires no special maintenance or care and are resistant to mold and fungi. Clean profile using common household cleaning agents. Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric acid, hydrofluoric acid, and chlorides. Stainless steel surfaces develop a sheen when treated with a chrome-polishing agent. The thermoplastic rubber inserts in DILEX-HKS are replaceable.

1. Select profile according to tile thickness and format.

2. Using a notched trowel, apply thin-set mortar over the area where the trapezoid-perforated anchoring legs will be placed.

3. Press the perforated anchoring leg(s) of the profile into the mortar.

Note: Install inside and outside corners, connectors, and end caps prior to setting tile. DILEX- HKS accessories are applied using a permanently elastic, waterproof adhesive (e.g., KERDI-FIX or silicone). Prior to application, any contact-inhibiting substances (e.g., grease, etc.) must be removed. The connectors should overlap the profiles by at least 3/8" (10 mm).

4. Trowel additional thin-set mortar where the tiles are to be installed.

5. Solidly embed the tiles, ensuring full coverage and support of the tile edges, and align flush with the top of the profile, leaving a joint of approximately 1/16" – 1/8" (1.5 - 3 mm) between the tile and the profile.

6. Fill the joints completely with grout or setting material.

Data sheets

Movement Joints Data Sheet
1.34 MB
Pdf

Brochures and Pamphlets

Profile Brochure
3.73 MB
Pdf

Warranties

MovementJointsandCoveShaped-Profiles-Warranty
57.92 KB
Pdf

Product Table

11203-preview
16.02 KB
CoveShaped_Profiles
2.87 MB
Pdf

Articles

tileletter-tiling-entryways-foyers-kerdi
4.35 MB
Pdf
Q:

How do I cut profiles?

A:

Schluter™ profiles are available in a variety of different materials , so methods for cutting vary. Below are best practices for cutting according...

Read more

Spec. Guides

Product Spec Guide 2019
1.25 MB
Pdf

CAD drawings

schlueter_cad_dilex_hks_inst
43.92 KB
DWG
schlueter_cad_dilex_hks_inst
27.08 KB
Pdf
schlueter_cad_dilex_hks_imp
47.73 KB
DWG
schlueter_cad_dilex_hks_metr
47.63 KB
DWG
schlueter_cad_dilex_hks_metr
33.61 KB
Pdf
schlueter_cad_dilex_hks_imp
37.76 KB
Pdf

Specify our products using the

Specification Logo

Watch & Learn
About the product

How to install a cove-shaped profile: Schluter®-DILEX-HKS profile

How to install a cove-shaped profile: Schluter®-DILEX-HKS profile

07:27
Introduction to Schluter® Profiles

Introduction to Schluter® Profiles

03:35
How to choose the appropriate profile size in relation to your tile

How to choose the appropriate profile size in relation to your tile

03:10
Best practices for cutting Schluter®-Systems Profiles

Best practices for cutting Schluter®-Systems Profiles

03:46
Maintenance for Schluter® Shower Drains & Schluter® Profiles

Maintenance for Schluter® Shower Drains & Schluter® Profiles

02:21

Find some existing tutorials and project documentation videos to learn how-to get the best out of our products - for more fun in your life, start now!

Watch more videos / playlists

Movement Joint Profiles / Inside Corner Movement Joints

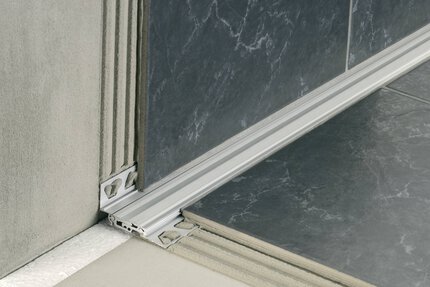

Schluter®-DILEX-BTO

Movement Joint Profiles / Surface & Expansion Joints

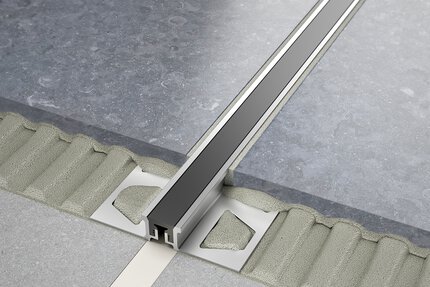

Schluter®-DILEX-KSN
